Core for Computational Biomedicine, Harvard Medical School

Andrew Ghazi

Core for Computational Biomedicine, Harvard Medical School

Smriti Chawla

Core for Computational Biomedicine, Harvard Medical School

Nitesh Turaga

Core for Computational Biomedicine, Harvard Medical School

Ludwig Geistlinger

Core for Computational Biomedicine, Harvard Medical School

Robert Gentleman

Core for Computational Biomedicine, Harvard Medical School
Source: vignettes/MERFISHCaseStudy.Rmd
MERFISHCaseStudy.Rmd

Purpose

Vignettes 2 and 3 worked with dissociated scRNA-seq data. scDiagnostics operates on SingleCellExperiment objects and does not assume any particular assay - the same diagnostics apply directly to a SpatialExperiment object from imaging-based spatial transcriptomics, without modification, and the same holds for SpatialFeatureExperiment objects (which extend SpatialExperiment with explicit cell/tissue geometries), since both inherit the same core SingleCellExperiment interface that scDiagnostics relies on. This vignette repeats the project-detect- characterize workflow on MERFISH spatial data from a mouse model of DSS-induced colitis (Cadinu et al. 2024): healthy colon tissue (Day 0, reference) versus tissue at peak inflammation (Day 9, query).

The data

merfish_reference_data and merfish_query_data are downsampled subsets on the same 943-gene targeted MERFISH panel, restricted to 5 shared cell types; see ?merfish_reference_data for details. At Day 9, some fibroblasts further split into an inflammation-associated “Inflamed Fibroblast” state (tier2_merged) that does not exist at Day 0; a merged cell_type_merged column collapses this back into a shared “Fibroblast” label so the two timepoints can be compared directly.

data("merfish_reference_data")
data("merfish_query_data")

class(merfish_reference_data)
#> [1] "SpatialExperiment"
#> attr(,"package")
#> [1] "SpatialExperiment"
table(merfish_reference_data$cell_type_merged)
#>
#>   Endothelial    Epithelial    Fibroblast  Other Immune Smooth Muscle
#>           220           220           220           220           220
table(merfish_query_data$tier2_merged[merfish_query_data$cell_type_merged == "Fibroblast"])
#>
#>          Fibroblast Inflamed Fibroblast
#>                 163                  97

Step 1: project

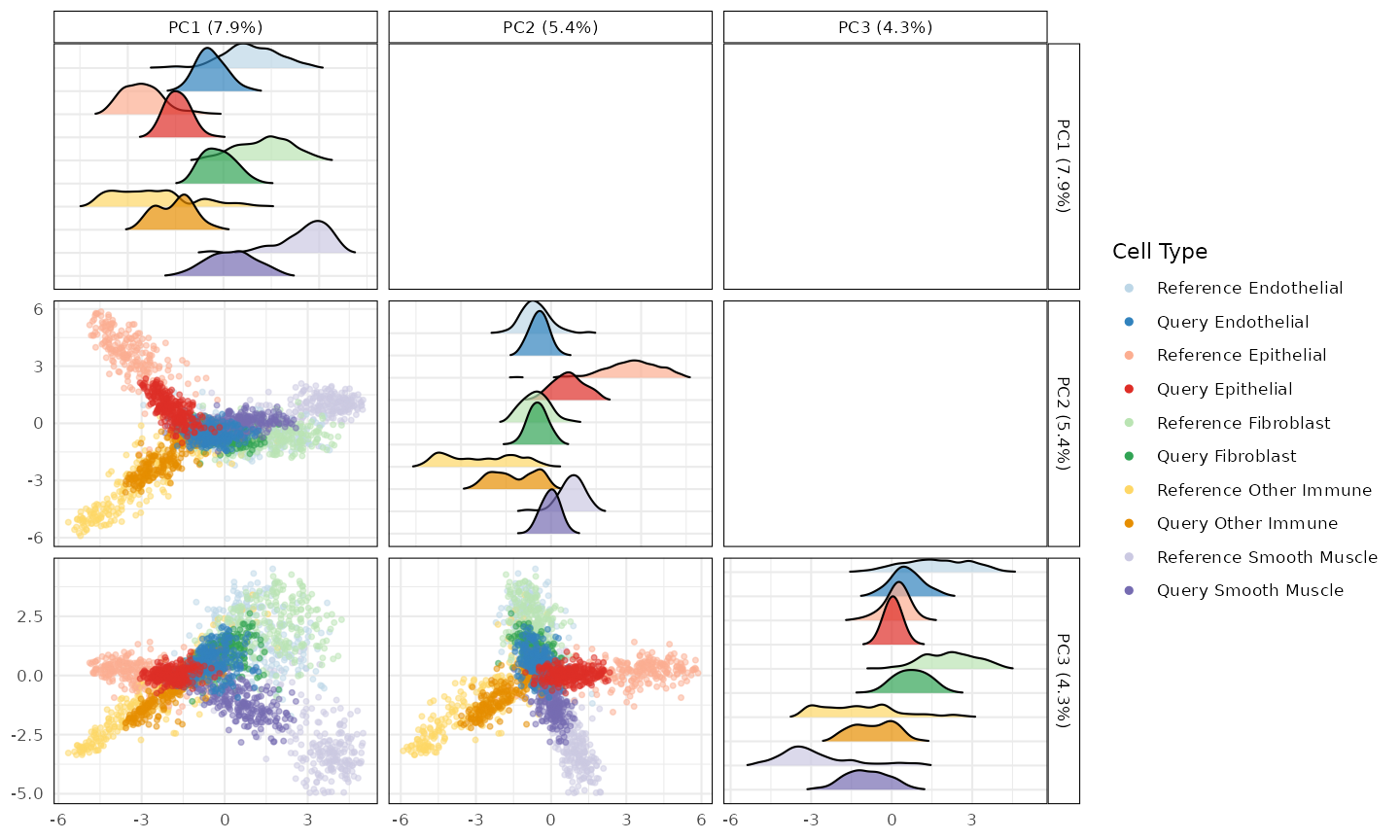

plotCellTypePCA(
    query_data = merfish_query_data,
    reference_data = merfish_reference_data,
    cell_types = unique(merfish_reference_data$cell_type_merged),
    query_cell_type_col = "cell_type_merged",
    ref_cell_type_col = "cell_type_merged",
    pc_subset = 1:3)
#> Picking joint bandwidth of 0.279
#> Picking joint bandwidth of 0.222
#> Picking joint bandwidth of 0.251

Step 2: detect

anomaly_output <- detectAnomaly(
    reference_data = merfish_reference_data,
    query_data = merfish_query_data,
    ref_cell_type_col = "cell_type_merged",
    query_cell_type_col = "cell_type_merged",
    cell_types = "Fibroblast",
    pc_subset = 1:5,
    n_tree = 500)

is_anomalous <- anomaly_output[["Fibroblast"]]$query_anomaly
mean(is_anomalous)
#> [1] 0.3307692

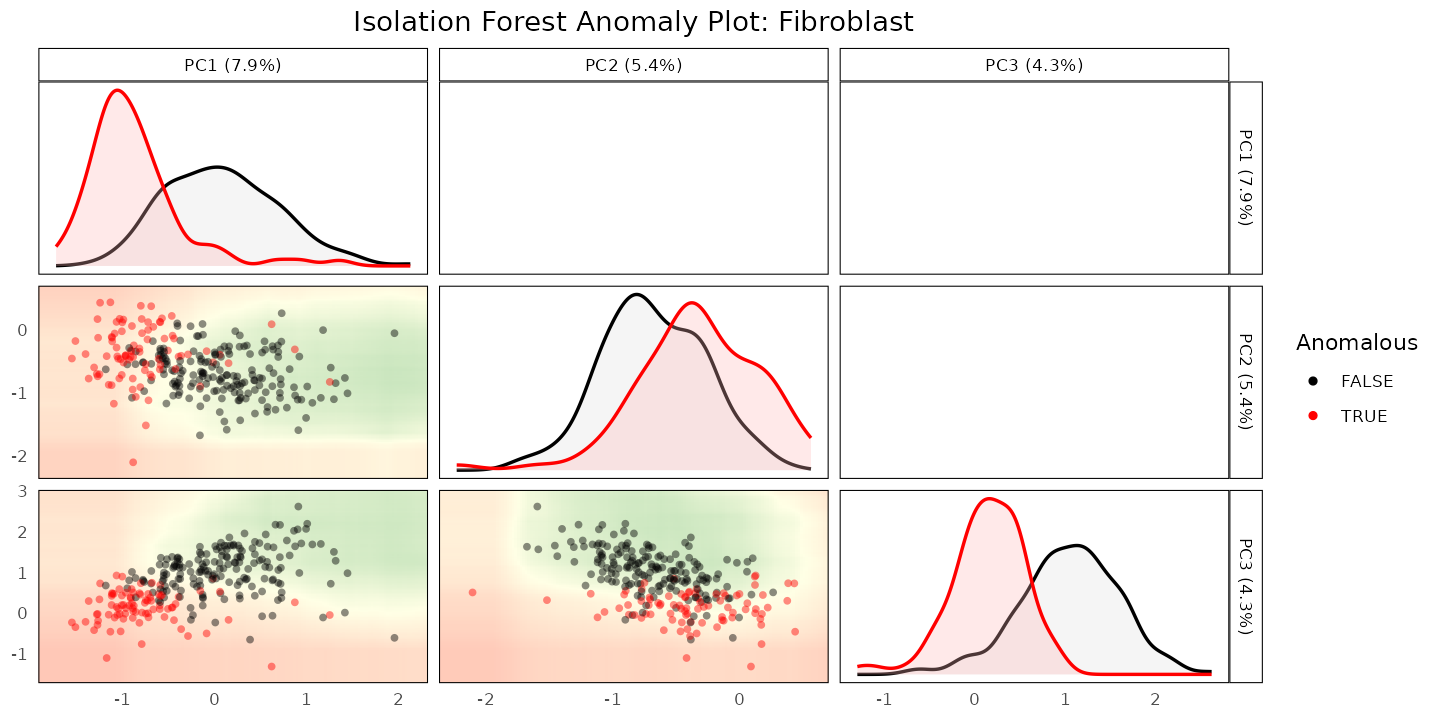

plot(anomaly_output, cell_type = "Fibroblast", pc_subset = 1:3, data_type = "query")

Because merfish_query_data retains the original fine-grained tier2_merged label, we can check how the flagged cells relate to the ground-truth “Inflamed Fibroblast” state:

fibro_query <- merfish_query_data[, merfish_query_data$cell_type_merged == "Fibroblast"]
tapply(is_anomalous, fibro_query$tier2_merged, mean)
#>          Fibroblast Inflamed Fibroblast
#>           0.1779141           0.5876289

In this downsampled dataset, cells with the ground-truth “Inflamed Fibroblast” label are flagged as anomalous roughly twice as often as plain “Fibroblast” cells - a real enrichment, though far from a clean separation, consistent with inflammation being a graded rather than binary state at the single-cell level.

Step 3: characterize

To characterize what distinguishes the flagged cells, calculateGeneShifts() can run its own internal anomaly detection (detect_anomalies = TRUE, anomaly_comparison = TRUE) on the full 943-gene panel - the same panel detectAnomaly() used above - while restricting the actual statistical comparison to a small extracellular matrix (ECM) gene panel via genes_to_analyze. This keeps detection and characterization consistent without needing to manually subset cells first:

ecm_signature <- c("Col1a2", "Timp2", "Col6a1", "Sparc", "Dpt")

gene_shifts <- calculateGeneShifts(
    query_data = merfish_query_data,
    reference_data = merfish_reference_data,
    query_cell_type_col = "cell_type_merged",
    ref_cell_type_col = "cell_type_merged",
    cell_types = "Fibroblast",
    pc_subset = 1:5,
    genes_to_analyze = ecm_signature,
    detect_anomalies = TRUE,
    anomaly_comparison = TRUE)

gene_shifts$PC1[order(gene_shifts$PC1$p_adjusted), ]
#>     gene loading  cell_type      p_value mean_query mean_reference   p_adjusted
#> 1    Dpt      NA Fibroblast 5.122401e-26  0.1317246       1.991780 2.561201e-25
#> 2  Sparc      NA Fibroblast 5.230999e-23  0.2882483       1.868690 1.307750e-22
#> 3 Col1a2      NA Fibroblast 1.030939e-22  0.4023466       2.106959 1.718231e-22
#> 4  Timp2      NA Fibroblast 9.084576e-20  0.1081913       1.289465 1.135572e-19
#> 5 Col6a1      NA Fibroblast 2.190372e-18  0.1925289       1.396044 2.190372e-18
#>   significant
#> 1        TRUE
#> 2        TRUE
#> 3        TRUE
#> 4        TRUE
#> 5        TRUE

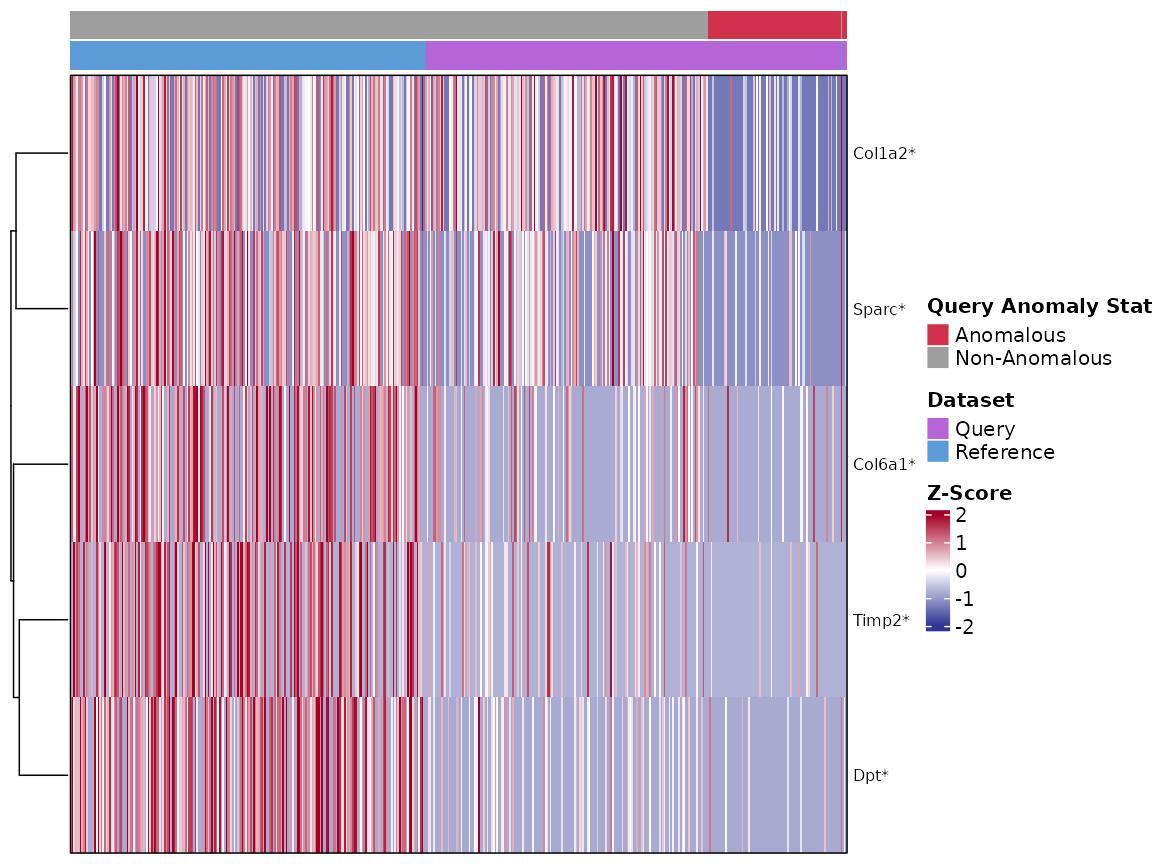

plot() shows this as a heatmap of per-gene z-scores, one column per cell (reference and query, annotated by anomaly status), rather than collapsing each group to a single averaged column - which matters here, since it reveals more than the group averages alone would:

plot(gene_shifts, cell_type = "Fibroblast", pc_subset = 1:5,
    plot_type = "heatmap", plot_by = "p_adjusted", n_genes = 5,
    show_anomalies = TRUE)

All five ECM genes are significantly lower in the anomalous query fibroblasts than in the reference, but the heatmap shows this isn’t a single uniform effect. Col1a2 and Sparc show a visible extra drop concentrated specifically in the anomalous (rightmost, red-annotated) cells, beyond what’s already true of the query more broadly. Timp2, Col6a1, and Dpt, on the other hand, are already substantially reduced across essentially all query fibroblasts - anomalous or not - so for those three genes, detectAnomaly() isn’t isolating a distinctly-shifted subgroup so much as reflecting a shift already present dataset-wide. This split held up across several PC-subset choices we checked, so it looks like a real property of this dataset rather than a detection parameter to tune away: some genes distinguish the specific cells flagged as anomalous, and others distinguish the query condition as a whole - both are useful, but they’re different claims.

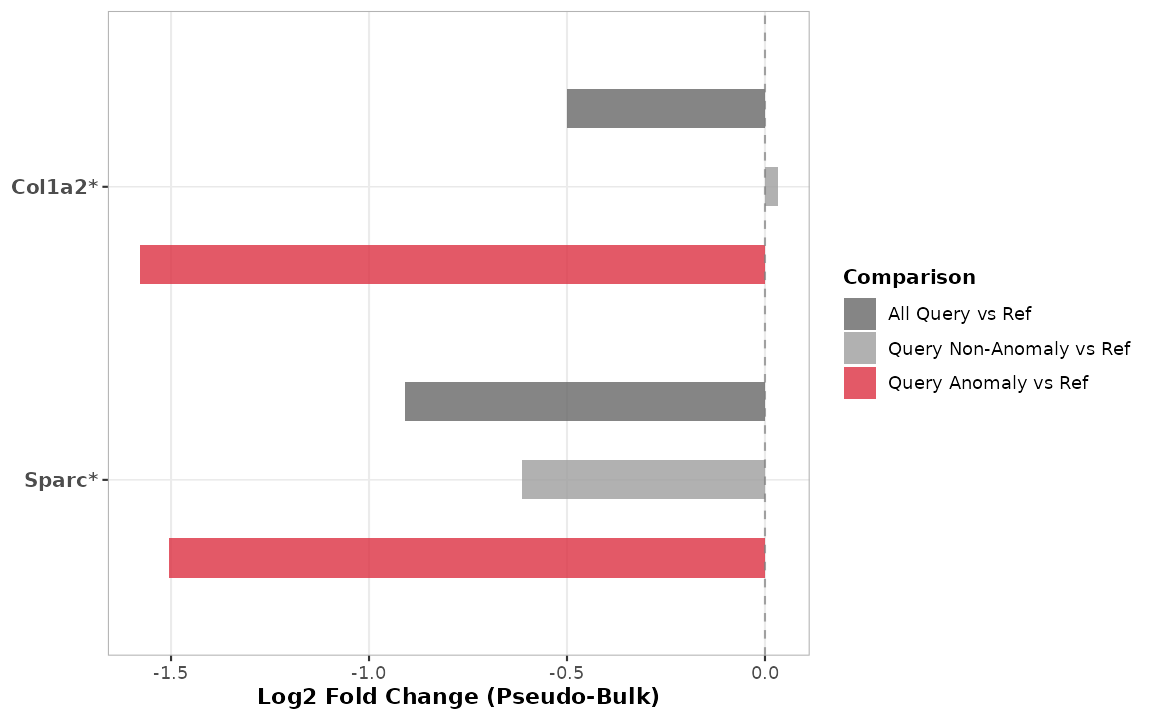

The barplot below focuses on Col1a2 and Sparc specifically, since they’re the clearest example of the anomaly-specific pattern - a “Query Non-Anomaly vs Ref” bar close to zero alongside a much larger “Query Anomaly vs Ref” bar, showing the shift really is concentrated in the flagged cells for these two genes (unlike Timp2/Col6a1/Dpt above, where the non-anomaly bar would already be nearly as large as the anomaly bar):

gene_shifts_focused <- calculateGeneShifts(
    query_data = merfish_query_data,
    reference_data = merfish_reference_data,
    query_cell_type_col = "cell_type_merged",
    ref_cell_type_col = "cell_type_merged",
    cell_types = "Fibroblast",
    pc_subset = 1:5,
    genes_to_analyze = c("Col1a2", "Sparc"),
    detect_anomalies = TRUE,
    anomaly_comparison = TRUE)

plot(gene_shifts_focused, cell_type = "Fibroblast", pc_subset = 1:5,
    plot_type = "barplot", plot_by = "p_adjusted", n_genes = 2,
    show_anomalies = TRUE, pseudo_bulk = TRUE)

As with the COVID-19 case study, this is a specific finding about this cell population in this dataset; the broader claim that this workflow generalizes across data modalities is best supported by comparing this result to the scRNA-seq case study in vignette 3, not by either result alone.
